Remove Dashboard (L.H.D).: Notes

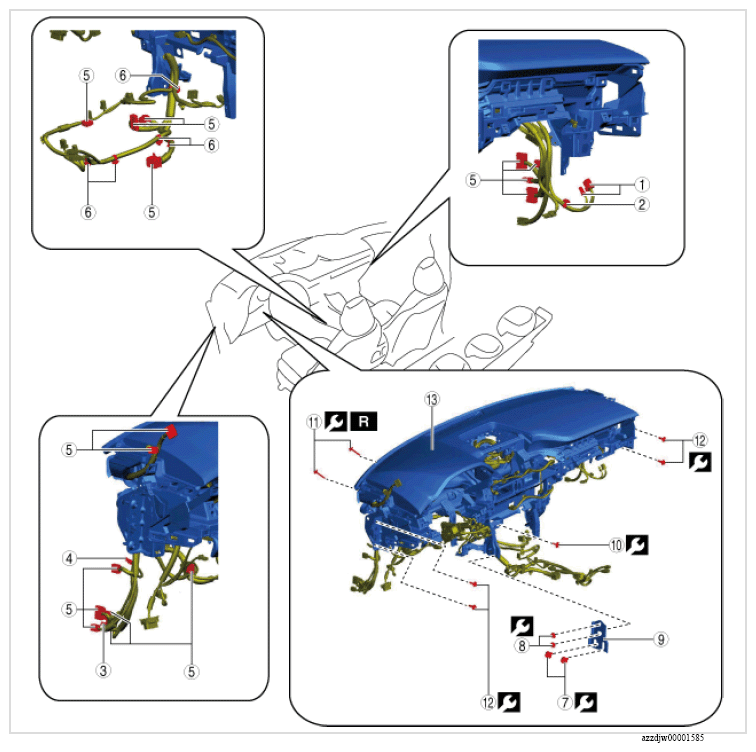

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | Applicable condition | ||
|---|---|---|---|---|
| 1 | Connector | With driver monitoring system | - | - |
| 2 | Wiring harness clip (See Wiring harness clip removal note ) |
With driver monitoring system | - | - |
| 3 | Connector | With rear view monitor (vehicle width extension lines) | - | - |
| 4 | Connector | With rear view monitor (guide line) | - | - |
| 5 | Connector | - | - | - |
| 6 | Wiring harness clip (See Wiring harness clip removal note ) |
- | - | - |
| 7 | Bolt | - | - | 26 N.m {2.65 kgf.m, 19.2 ft.lb} |
| 8 | Nut | - | - | 26 N.m {2.65 kgf.m, 19.2 ft.lb} |
| 9 | Dashboard bracket | - | - | - |
| 10 | Bolt | - | - | 7.5 N.m {75 kgf.cm, 65 in.lb} |
| 11 | Bolt | - | Replacement part | 10 N.m {102 kgf.cm, 89 in.lb} |
| 12 | Bolt | - | - | 19 N.m {1.95 kgf.m, 14.1 ft.lb} |
| 13 | Dashboard (See Dashboard Removal Note ) |
- | - | - |
