Active Driving Display Removal/Installation [L.H.D.]
>>
Remove Connectivity Master Unit (CMU)
>>
Connectivity master unit (CMU) installation note
Connectivity master unit (CMU) installation note

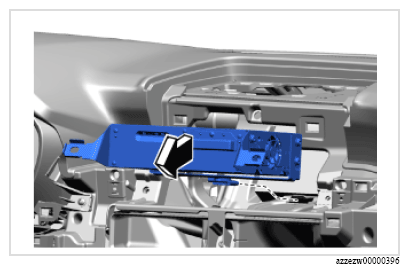

Install the connectivity master unit (CMU) in the position shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
