Remove Climate Control Unit: Notes

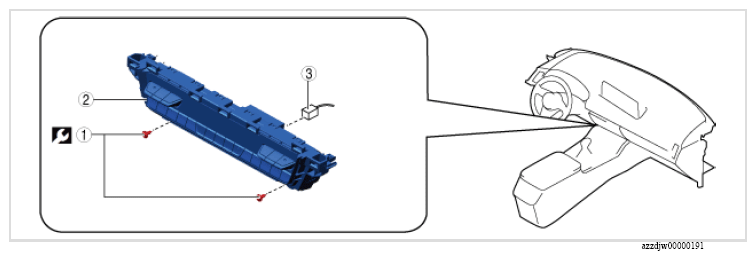

Fig 1: Climate Control Unit, Connector And Screws With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Screw	2.5 N.m {25 kgf.cm, 22 in.lb}
2	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL NOTE )	-
3	Connector	-
