Remove Center Display
NOTE:
- The center display is integrated with the following parts.
- Driver monitoring camera LED (with driver monitoring system)
- Driver monitoring camera (with driver monitoring system)

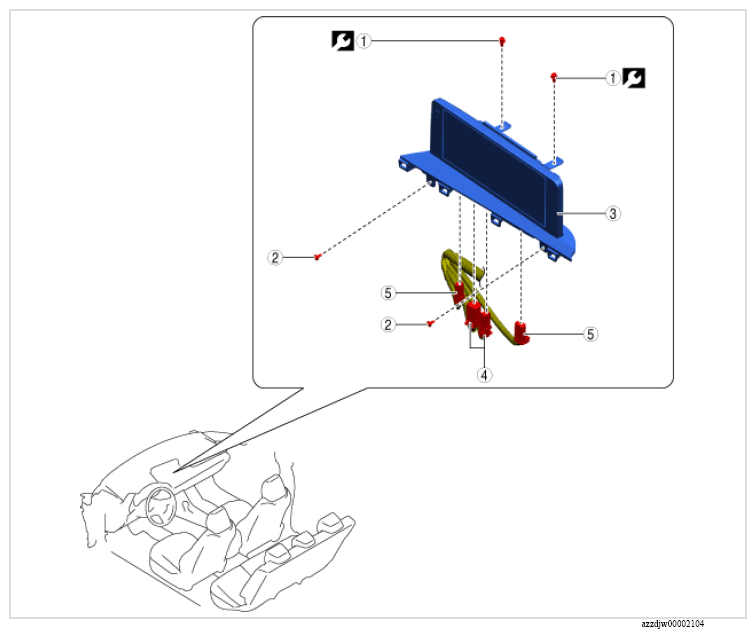

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | Applicable condition | |
|---|---|---|---|
| 1 | Bolt | - | 11 N.m {110 kgf.cm, 95 in.lb} |
| 2 | Screw | - | - |
| 3 | Center display | - | - |
| 4 | Connector | - | - |
| 5 | Connector | With driver monitoring system | - |
