Remove Active Driving Display

CAUTION:

When replacing the active driving display, perform the configuration to assure that the system operates correctly.
When storing the active driving display, place it with the active driving display lens facing upward. Otherwise, the active driving display lens may be damaged and the active driving display may not operate normally.

Courtesy of MAZDA MOTORS CORP.

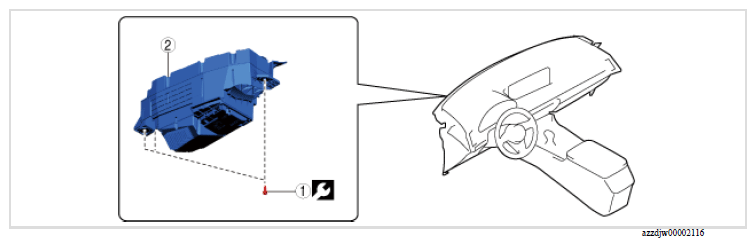

Fig 1: Active Driving Display And Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
2	Active driving display	-
