Magnetic Clutch Inspection (VIN Y)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Disconnect the magnetic clutch connector. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (VIN Y) .)

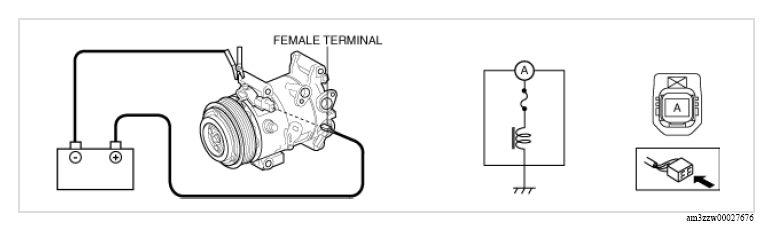

- Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.
- Verify that the magnetic clutch operates.
- If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (VIN Y) .)
