Function Explanation (DTC Detection Outline)
WARNING: This page is about a different variant/trim than selected.
- The PCM detects the pressure of the fuel tank based on the fuel tank pressure sensor signal. The PCM determines a fuel tank pressure sensor signal error based on the condition in which the fuel tank pressure sensor voltage continues to be the specified value or more, and stores a DTC.

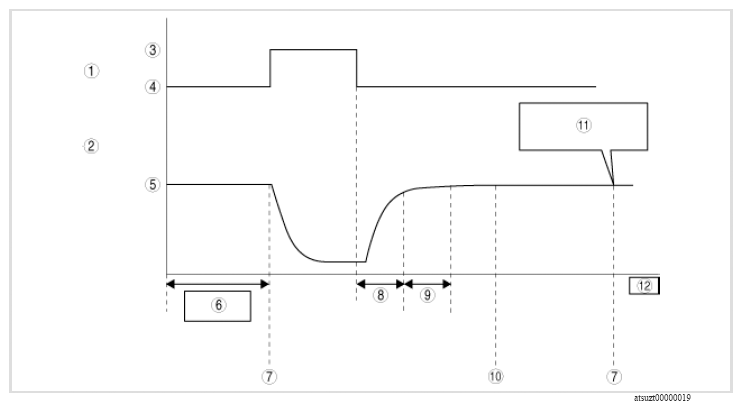

PCM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Purge solenoid valve drive signal |
| 2 | Fuel tank pressure sensor detection pressure (kPa) |
| 3 | On (open) |
| 4 | Off (close) |
| 5 | 0 (barometric pressure) |
| 6 | Knock period |
| 7 | Ignition switched on |
| 8 | 10 s |
| 9 | Pressure average value measurement |
| 10 | Ignition switched off |
| 11 | P0451:00 Recorded as result of pressure average measurement being specified value or more |
| 12 | Time |
