Mode 03 (EGR System, Variable Valve Timing, A/F Sensor, HO2S and TWC Repair Verification Drive Mode)
WARNING: This page is about a different variant/trim than selected.
- Start the engine and warm it up completely.
- Verify all accessory loads (A/C, headlights, blower fan, rear window defogger) are off.

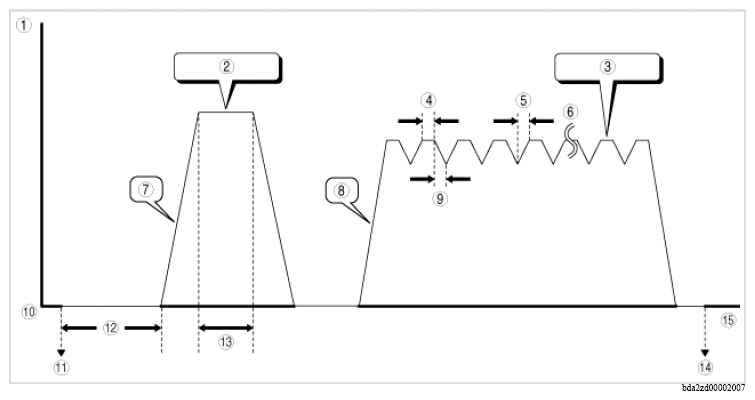

- Drive the vehicle as shown in the graph.PCM COMPONENT OPERATIONS
Component No. Refer to 1 Vehicle speed 2 90 km/h {56 mph} or more in D position 3 Decelerate by engine braking only while driving with engine speed 1, 900-2.100 rpm. (lock in 4th gear) 4 Approx. 30 s 5 Approx. 7 s 6 30 times 7 Accelerate to 90 km/h {55 mph} within 20 s. 8 Accelerate to 1, 900-2.100 rpm within 15 s in 4th gear. 9 Approx. 9 s 10 0 11 Start engine 12 5 min or more 13 1 min 14 Stop engine 15 Time - Verify that no DTCs are displayed.
