Function Explanation (DTC Detection Outline)
WARNING: This page is about a different variant/trim than selected.
- With the preconditions met, the PCM verifies the conformity of the actual timing relative to the target valve timing. If it does not conform to the normal determination range (difference between target valve timing and actual valve timing is 15 degrees or less) during the malfunction determination period (approx. 10 s), even if the target valve timing is set to the advance side, the PCM determines an excess retard malfunction condition and stores a DTC.

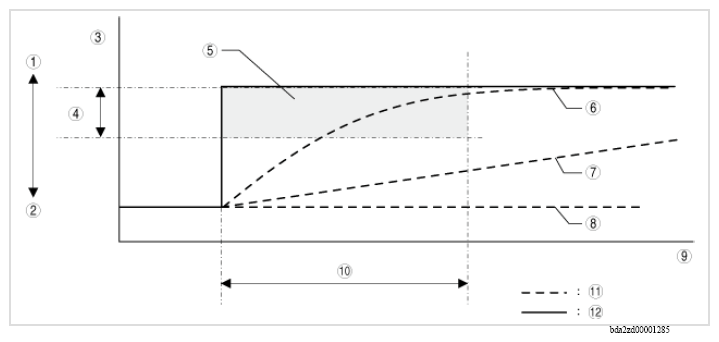

PCM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Advance side |
| 2 | Retard side |
| 3 | deg. CA |
| 4 | 15 deg |
| 5 | Normal determination range |
| 6 | Normal |
| 7 | Abnormal (slow response) |
| 8 | Abnormal (stuck) |
| 9 | Time |
| 10 | Approx. 10 s |
| 11 | Actual valve timing |
| 12 | Target valve timing |
