Will Not Crank (VIN Y): Outline
WARNING: This page is about a different variant/trim than selected.
WILL NOT CRANK (VIN Y) DESCRIPTION AND POSSIBLE CAUSE
| Troubleshooting item |
Will not crank |
| Description |
- Cannot crank. (Starter does not rotate.)
|
| Possible cause |
- Battery malfunction
- Fuse malfunction
- Poor connection of push button start connector
- Instrument cluster or related wiring harness malfunction
- Immobilizer system malfunction
- PCM detects DTCs
- Open circuit in PCM power supply circuit
- Open circuit in main relay control circuit
- Malfunction in CAN communication line between DLC-2 and PCM
- Main relay malfunction (stuck open)
- Poor connection of vehicle body ground
- Starter relay malfunction
- TCM malfunction (without shift by wire)
- TCM and related wiring harness malfunction (without shift by wire)
- Selector lever malfunction (with shift by wire)
- Selector lever and related wiring harness malfunction (with shift by wire)
- Short to ground in starter relay control circuit
- Open circuit in starter relay control circuit
- Short to ground or open circuit in starter relay power supply circuit
- Short to ground or open circuit in starter power supply circuit
- Engine starting system malfunction
- Following circuit and/or connector malfunction:
- Between coil antenna and LF control unit
- Between LF control unit and body control module (BCM)
- Between body control module (BCM) and PCM
- Seized engine or drive plate
- Engine damage during compression due to liquid (such as water, fuel, or engine oil) penetration into cylinder
WARNING:
- The following troubleshooting flow chart contains the fuel system diagnosis and repair procedures. Read the following warnings before performing the fuel system services:
- Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
- Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the [Fuel Line Safety Procedure] to prevent the fuel from spraying. (Refer to BEFORE SERVICE PRECAUTION (VIN Y)
.)
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
- Fuel is highly flammable and dangerous. Fuel line spills and leakage can cause serious injury or death, and damage to equipment. Always refer to the [Quick Release Connector Removal/Installation (fuel system)] before performing the fuel hose installation, and execute the [Fuel Leakage Inspection] after installation. (Refer to QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION (VIN Y)
.) (Refer to AFTER SERVICE PRECAUTION (VIN Y)
.)
CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may possibly cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting, and make sure that it is free of foreign material.
|

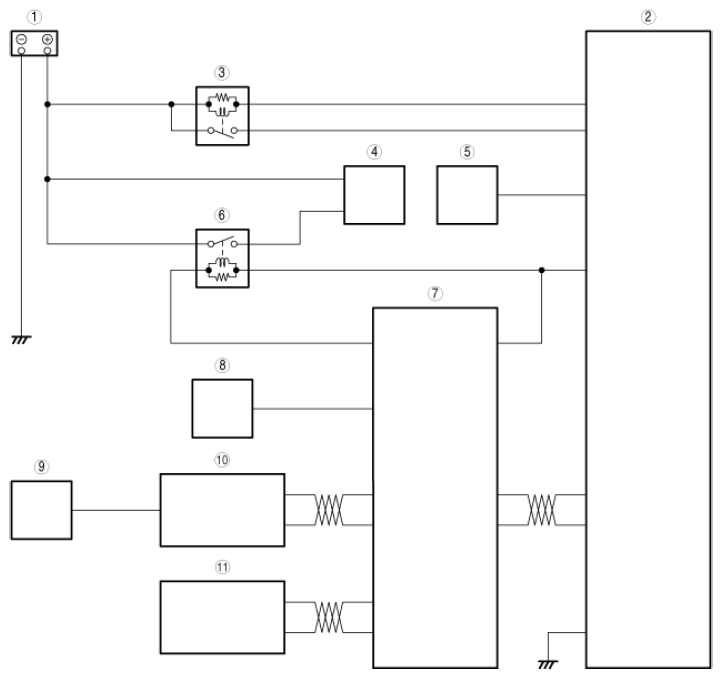

 Courtesy of MAZDA MOTORS CORP.
|
| 1 |
Battery |
| 2 |
PCM |
| 3 |
Main relay |
| 4 |
Starter |
| 5 |
With shift by wire
Without shift by wire
|
| 6 |
Starter relay |
| 7 |
Body control module (BCM) |
| 8 |
Data link connector-2 |
| 9 |
Push button start |
| 10 |
LF control unit |
| 11 |
Instrument cluster |
