Tunnel Member Installation Note

WARNING: This page is about a different variant/trim than selected.

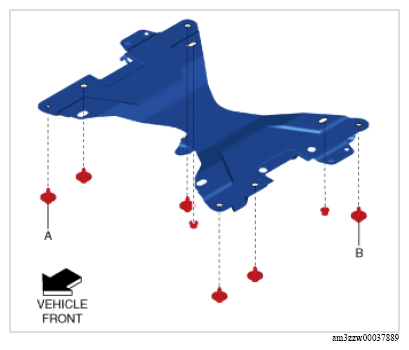

  1. Tighten bolt A shown in the figure to the specified torque.
    G16372341Courtesy of MAZDA MOTORS CORP.
  2. Tighten bolt B shown in the figure to the specified torque.
  3. Tighten the remaining bolts and nuts to the specified torque.
