Tunnel Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

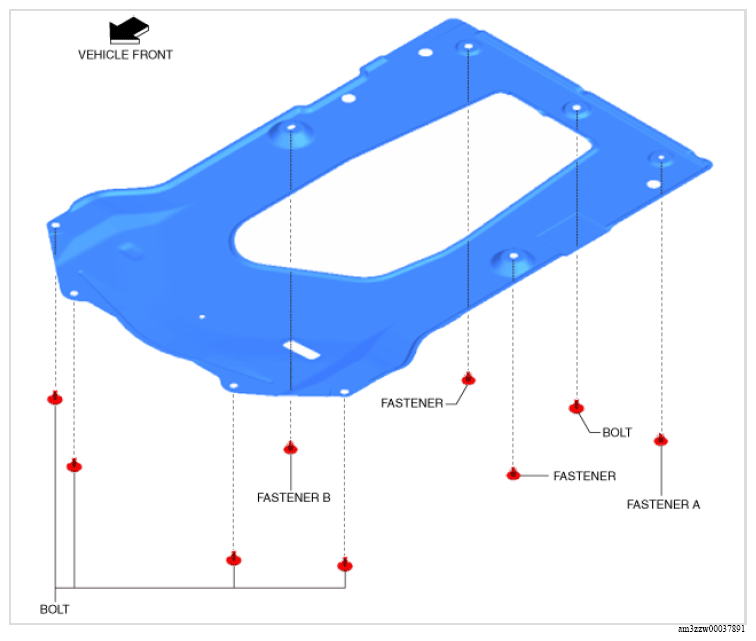

  1. Install fastener A shown in the figure.
    G16372343Courtesy of MAZDA MOTORS CORP.
  2. Install fastener B shown in the figure.
  3. Install the remaining fasteners.
  4. Tighten the nuts shown in the figure to the specified torque.
