Water hose No. 1 and No. 2 (oil cooler side) installation note

WARNING: This page is about a different variant/trim than selected.

Install the water hose to the oil cooler as shown in the figure with the hose clamp expanded.

Courtesy of MAZDA MOTORS CORP.

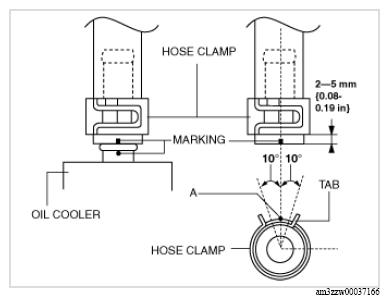

Install the hose clamp so that center A of the hose clamp tab is within the range shown in the figure.
- Verify that the installation angle of the hose clamp is within the range shown in the figure.
Water hose No. 1

Courtesy of MAZDA MOTORS CORP.

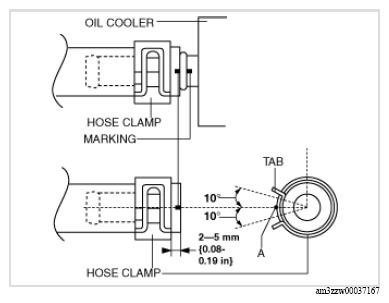

Water hose No. 2

Courtesy of MAZDA MOTORS CORP.
Verify that the hose clamp does not interfere with any other components.
