Starting System Location Index (VIN Y)

WARNING: This page is about a different variant/trim than selected.

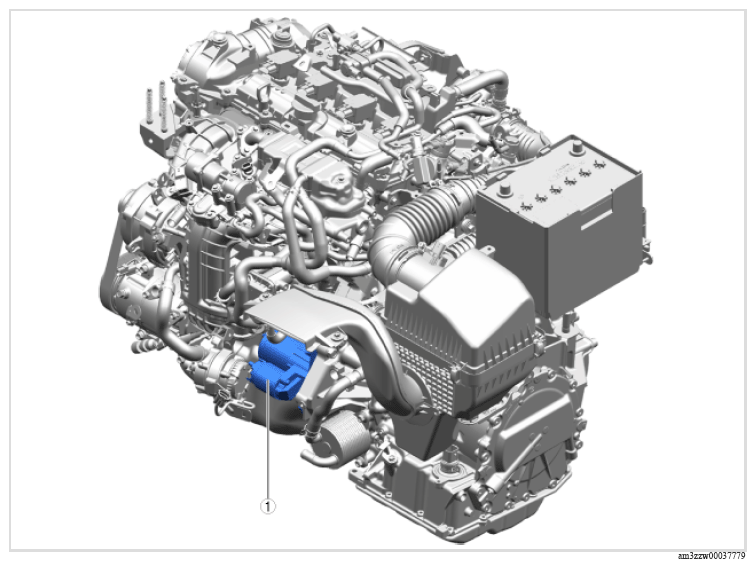

Fig 1: Starting System Components Location

Courtesy of MAZDA MOTORS CORP.

STARTING SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Starter (See STARTER REMOVAL/INSTALLATION (VIN Y) .) (See STARTER INSPECTION (VIN Y) .) (See STARTER DISASSEMBLY/ASSEMBLY (VIN Y) .)
