Magnetic switch

WARNING: This page is about a different variant/trim than selected.

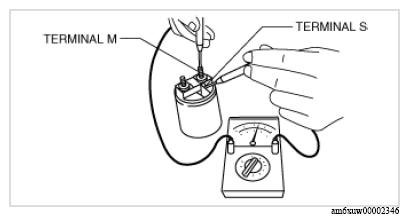

  1. Inspect for continuity between terminals S and M using a tester.
    G16372697Courtesy of MAZDA MOTORS CORP.
    • If there is no continuity, replace the magnetic switch.

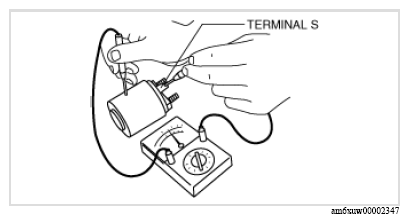

  2. Inspect for continuity between terminal S and the body using a tester.
    G16372698Courtesy of MAZDA MOTORS CORP.
    • If there is no continuity, replace the magnetic switch.

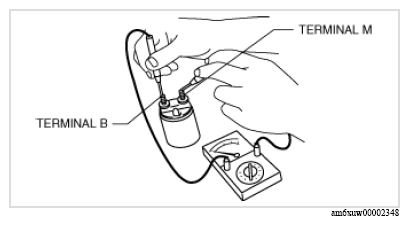

  3. Verify that there is no continuity between terminals M and B using a tester.
    G16372699Courtesy of MAZDA MOTORS CORP.
    • If there is continuity, replace the magnetic switch.
