Pinion Gap Inspection

WARNING: This page is about a different variant/trim than selected.

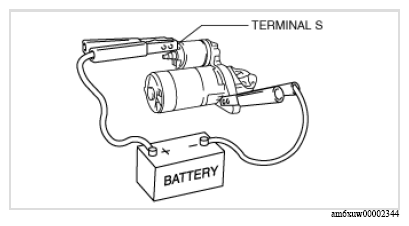

Pull out the drive pinion with the battery positive voltage connected to terminal S and the starter body grounded.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Applying power for more than 10 s can damage the starter. Do not apply power for more than 10 s.
Measure the pinion gap while the drive pinion is extended.

Courtesy of MAZDA MOTORS CORP.
- If not as specified, adjust with an adjustment washer (between drive housing front cover and magnetic switch).
  Starter pinion gap

  0.5-2.0 mm {0.02-0.07 in}
