Airflow Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION (VIN Y) .)

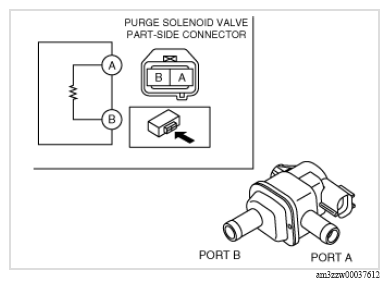

- Inspect airflow between the ports under the following conditions.
| Measured condition | Continuity between ports A-B |
|---|---|
| When voltage is not applied between terminals A and B | No airflow |
| When voltage is applied between terminals A and B | Airflow detected |
- If not as specified, replace the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION (VIN Y) .)
