Exhaust System Side

WARNING: This page is about a different variant/trim than selected.

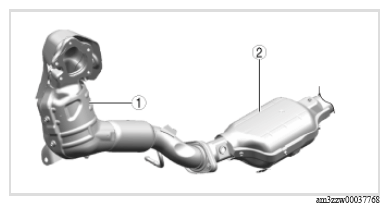

Fig 1: Emission System Components Location - Exhaust System Side
G16372529Courtesy of MAZDA MOTORS CORP.
EMISSION SYSTEM COMPONENT OPERATIONS

Component No. Refer to
1 WU-TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN Y) .)
(See WARM-UP THREE-WAY CATALYTIC CONVERTER (WU-TWC) INSPECTION (VIN Y) .)
2 TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN Y) .)
