EGR Cooler Removal/Installation (VIN Y)
>>
Vacuum Hose Installation Note
Vacuum Hose Installation Note
WARNING:
This page is about a different variant/trim than selected.

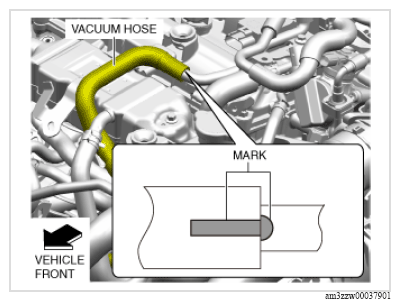

Connect the vacuum hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
