Oil Pump Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil pump using the following procedure.

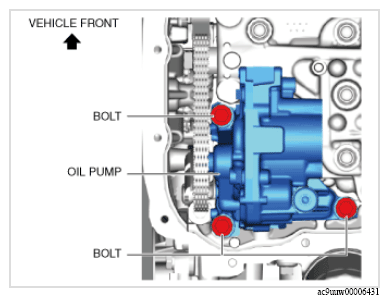

    1. Temporarily tighten the three bolts shown in the figure.
      G16371742Courtesy of MAZDA MOTORS CORP.

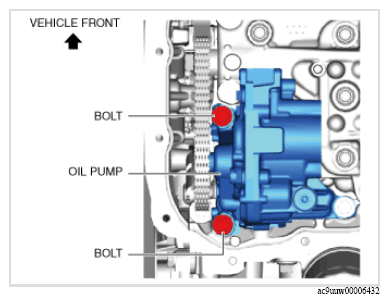

    2. Tighten the two bolts shown in the figure to the specified torque.
      G16371743Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • The tightening order for the two bolts is optional.

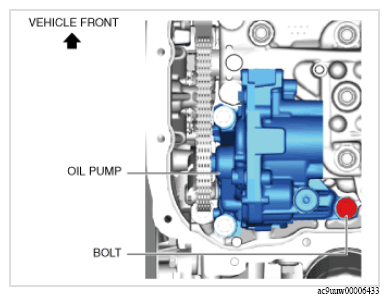

    3. Finally, tighten the bolt shown in the figure to the specified torque.
    G16371744Courtesy of MAZDA MOTORS CORP.
