Oil Pump Driven Sprocket Removal Note

WARNING: This page is about a different variant/trim than selected.

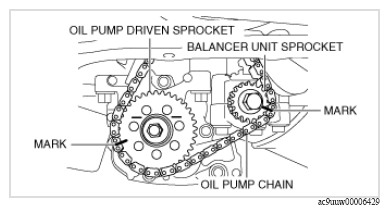

  1. Mark the following parts as shown in the figure.
    • Oil pump driven sprocket
    • Oil pump chain
    • Balancer unit sprocket
    G16371739Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The marks will be used as alignment marks when installing the oil pump driven sprocket.
  2. While locking the oil pump against rotation as shown in the figure, remove the oil pump driven sprocket installation bolt.
    G16371740Courtesy of MAZDA MOTORS CORP.
  3. While pressing the oil pump chain in the direction of the arrow shown in the figure, remove the oil pump driven sprocket.
G16371741Courtesy of MAZDA MOTORS CORP.
