Lubrication System Location Index (VIN Y)
WARNING: This page is about a different variant/trim than selected.

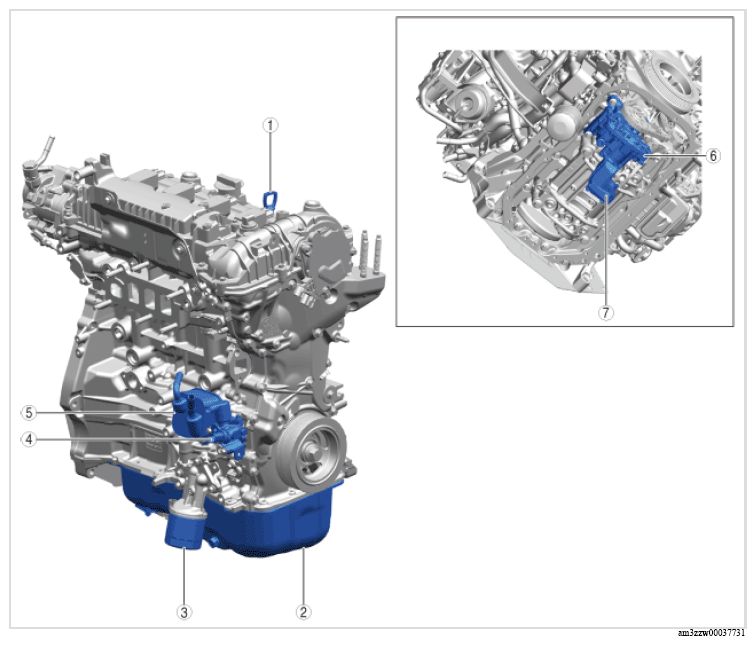

LUBRICATION SYSTEM COMPONENT OPERATIONS
| Component No | Refer to |
|---|---|
| 1 | Dipstick (See ENGINE OIL LEVEL INSPECTION (VIN Y) .) (See ENGINE OIL REPLACEMENT (VIN Y) .) |
| 2 | Oil pan (See OIL PAN REMOVAL/INSTALLATION (VIN Y) .) |
| 3 | Oil filter (See OIL FILTER REPLACEMENT (VIN Y) .) |
| 4 | Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION (VIN Y) .) (See ENGINE OIL SOLENOID VALVE INSPECTION (VIN Y) .) |
| 5 | Oil cooler (See OIL COOLER REMOVAL/INSTALLATION (VIN Y) .) |
| 6 | Oil pump component (See OIL PUMP REMOVAL/INSTALLATION (VIN Y) .) |
| 7 | Oil strainer (See OIL PUMP REMOVAL/INSTALLATION (VIN Y) .) |
