Engine Oil Solenoid Valve Connector Disconnecting Note

WARNING: This page is about a different variant/trim than selected.

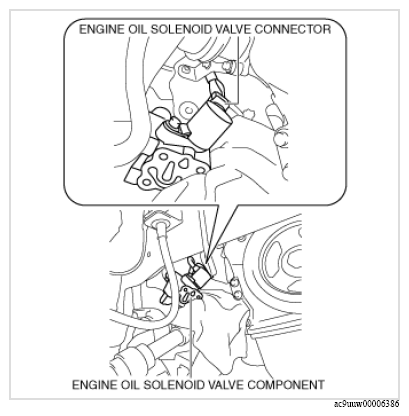

  1. Pull out the engine oil solenoid valve component with the connector connected as shown in the figure.
    G16371721Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the engine oil solenoid valve connector.
