Bolt Installation Note

WARNING: This page is about a different variant/trim than selected.

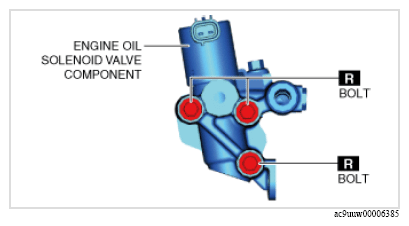

After tightening the three bolts shown in the figure, tighten the first tightened bolt to the specified tightening torque again.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- The tightening order for the three bolts is optional.

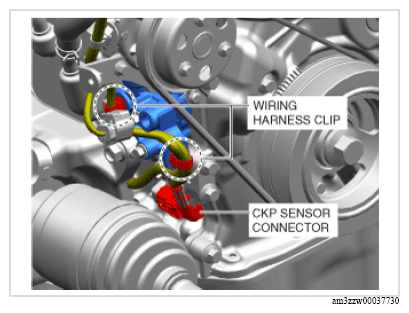

Install the wiring harness clips and connector shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Tighten the bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.
