Check Valve (Intake-Air System) Removal/Installation (VIN Y): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN Y) .)
  2. Remove in the order indicated in the table.

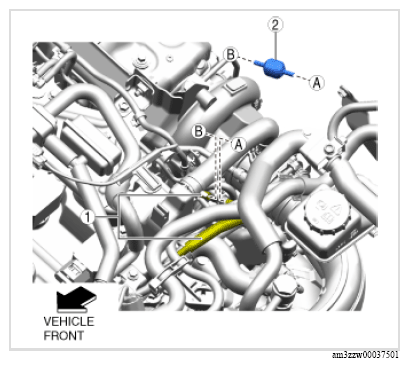

    G16371939Courtesy of MAZDA MOTORS CORP.
    CHECK VALVE (INTAKE-AIR SYSTEM) COMPONENT OPERATIONS

    Component No. Refer to
    1 Vacuum hose
    2 Check valve
    (See CHECK VALVE INSTALLATION NOTE .)
  3. Install in the reverse order of removal.
