Rear Oil Seal Replacement (VIN Y): Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

49 S033 101
Dust cover installer

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Rear oil seal
Quantity: 1
Location of use: Cylinder block

Oil and Chemical Type

Engine oil
Type: Recommended oil

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .)
Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [GW6AX-EL] .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

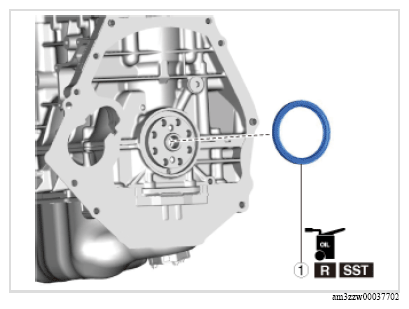

Courtesy of MAZDA MOTORS CORP.

REAR OIL SEAL REPLACEMENT COMPONENT OPERATIONS

Component no	Refer to
1	Rear oil seal (See REAR OIL SEAL INSTALLATION NOTE .) (See REAR OIL SEAL INSTALLATION NOTE .)
