No. 4 engine mount bracket and rubber installation note

WARNING: This page is about a different variant/trim than selected.

NOTE:

When replacing the No. 4 engine mount bracket, place a mark at the same position as the one placed before removal.
If the No. 4 engine mount bracket nut is loosened, tighten the transaxle stud bolts because they may have loosened.

Tighten the transaxle stud bolts.

Fig 1: Transaxle Stud Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Align the alignment marks on the No. 4 engine mount rubber and nuts, and temporarily tighten the nuts shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Align the alignment marks on the No. 4 engine mount bracket and bolts, and temporarily tighten the bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

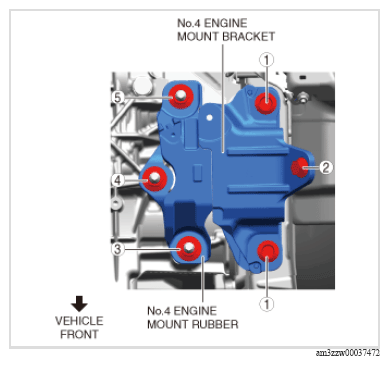

Temporarily tighten the No. 4 engine mount bracket and rubber installation bolts in the order shown in the figure.

Fig 2: No. 4 Engine Mount Bracket And Rubber Installation Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Tighten the No. 4 engine mount rubber installation bolts in the order shown in the figure.

Fig 3: No. 4 Engine Mount Rubber Installation Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
