Hydraulic Variable Valve Timing Actuator Removal Note

WARNING: This page is about a different variant/trim than selected.

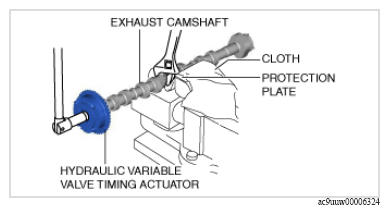

  1. Lock the exhaust camshaft against rotation by holding the exhaust camshaft with a vise and securing the cast hexagon with a wrench.
    G16379545Courtesy of MAZDA MOTORS CORP.
  2. Loosen the hydraulic variable valve timing actuator installation bolt and remove the actuator.
