Drive Belt Auto TENSIONER Removal/Installation (VIN Y): Notes

WARNING:

• A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

CAUTION:

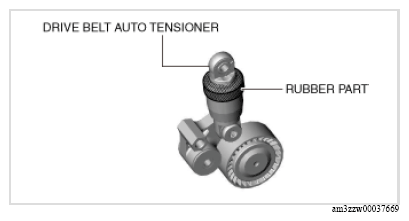

• If the rubber part of the drive belt auto tensioner is damaged by a screwdriver or other tool, oil in the hydraulic pressure unit could leak and the tensioner may not operate normally. Be careful not to damage the rubber part of the drive belt auto tensioner.

Courtesy of MAZDA MOTORS CORP.

1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN Y) .)
2. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION (VIN Y) .)
3. Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION (VIN Y) .)
4. Remove the No. 3 engine mount. (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY (VIN Y) .)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
   Fig 1: Drive Belt Auto Tensioner Component Location With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   DRIVE BELT AUTO TENSIONER COMPONENT OPERATIONS



   Component no	Refer to
   1	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSTALLATION NOTE .)
