Camshaft Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the camshaft cap installation bolts in a few passes in the order shown in the figure and remove the camshaft caps.

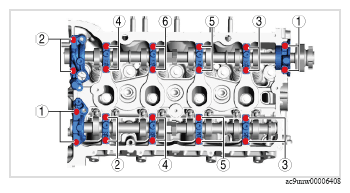

    Fig 1: Camshaft Cap Installation Bolts Loosening Sequence
    G16379492Courtesy of MAZDA MOTORS CORP.
  2. Remove the camshaft.
