Protector Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the protector.
  2. Install the ground cable to the protector.

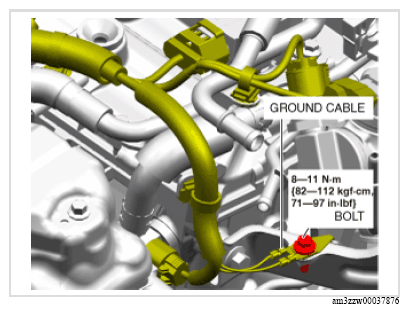

    Fig 1: Ground Cable Bolt With Torque Specification
    G16372239Courtesy of MAZDA MOTORS CORP.
  3. Install the clip to the protector.
G16372240Courtesy of MAZDA MOTORS CORP.
