Manifold Absolute Pressure (Map) Sensor/Intake Air Temperature (IAT) Sensor No. 2 Removal/Installation (VIN Y)

WARNING: This page is about a different variant/trim than selected.

NOTE:

The MAP sensor and IAT sensor No. 2 cannot be removed as a single unit. When replacing the MAP sensor or IAT sensor No. 2, replace the MAP sensor/IAT sensor No. 2.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN Y) .)
Disconnect the MAP sensor/IAT sensor No. 2 connector.
Remove the screw.

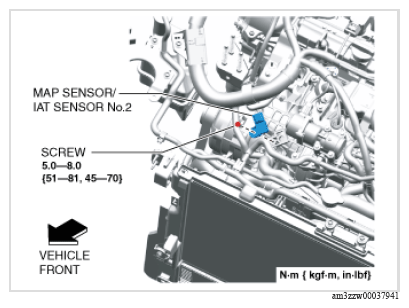

Fig 1: MAP Sensor/IAT Sensor No. 2 And Screw With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the MAP sensor/IAT sensor No. 2.
Install in the reverse order of removal.
