Section 10 (Engine Control System (VIN Y))
>>
Crankshaft Position (CKP) Sensor Inspection (VIN Y)
>>

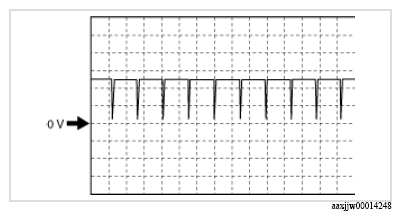

Wave pattern (reference)
Wave pattern (reference)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.
Oscilloscope setting
2 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
Courtesy of MAZDA MOTORS CORP.
