Exhaust CMP Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN Y) .)

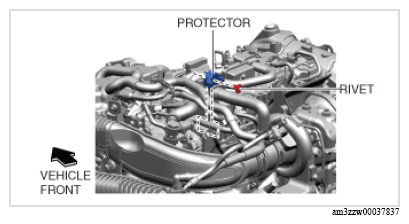

  3. Remove the protector.
    G16372911Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the exhaust CMP sensor connector.
  5. Remove the bolt.

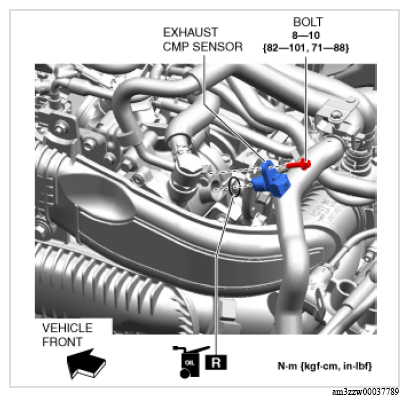

    Fig 1: Exhaust CMP Sensor And Bolt With Torque Specification
    G16372912Courtesy of MAZDA MOTORS CORP.
  6. Remove the exhaust CMP sensor.
  7. Install in the reverse order of removal.
