Air Fuel Ratio (A/F) Sensor Removal/Installation (VIN Y)

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

SPECIAL SERVICE TOOL DESCRIPTION

49 L018 001
O2 sensor wrench

Courtesy of MAZDA MOTORS CORP.

WARNING:

A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

CAUTION:

Do not allow flammable objects such as the taping for bundling the wiring harness to come into contact with the exhaust system such as the exhaust manifold and silencer which reach high temperatures. Otherwise, it could cause fire damage.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the Plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN Y) .)
Remove the clip and bolt shown in the figure and set the ground cable aside.

Fig 1: Ground Cable, Clip And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the A/F sensor connector.
Remove the A/F sensor using the SST.

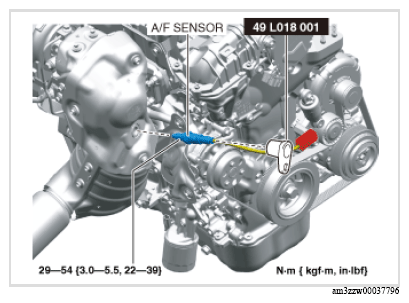

Fig 2: A/F Sensor With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
