Water Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

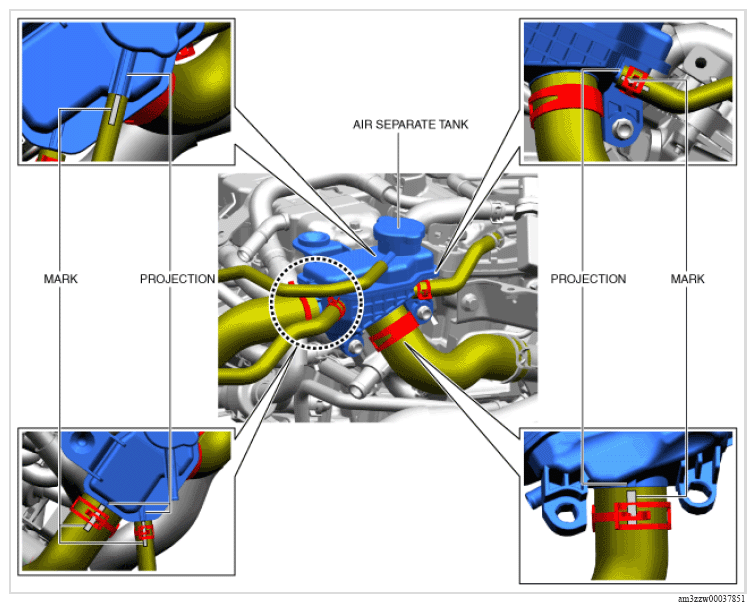

  1. Connect the water hose to the air separate tank so that the projection position is aligned with the mark.
G16371829Courtesy of MAZDA MOTORS CORP.
