B-Pillar Lower Trim Removal/Installation
- Remove the following parts:
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)

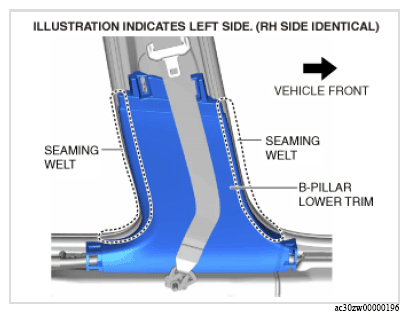

- Partially peel back the seaming welt.

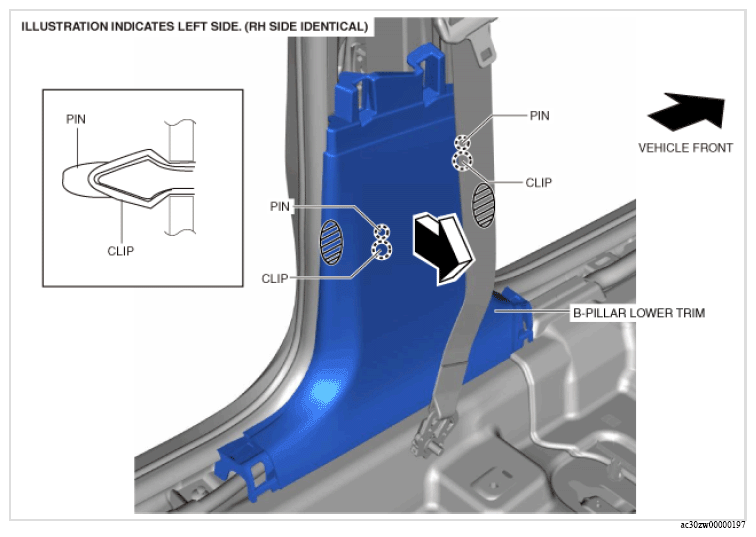

- Grasp the shaded areas shown in the figure, and pull the B-pillar lower trim in the direction of the arrow while detaching the clips and pins.
- Install in the reverse order of removal.
