Rear Mudguard

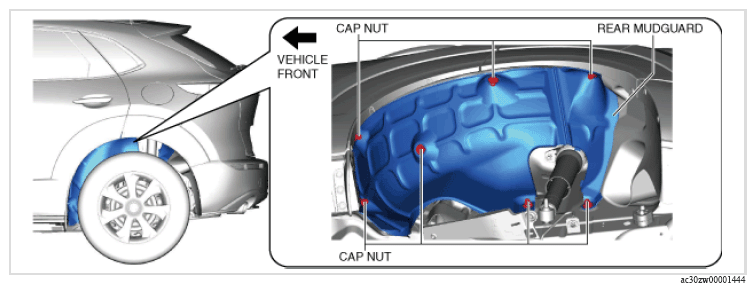

  1. Remove the cap nuts.
    G16376718Courtesy of MAZDA MOTORS CORP.

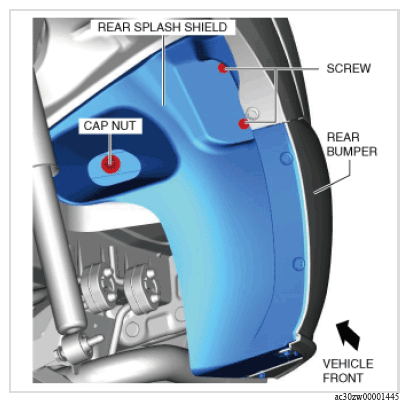

  2. Remove the screws and cap nut.
    G16376719Courtesy of MAZDA MOTORS CORP.
  3. Partially peel back the rear splash shield.

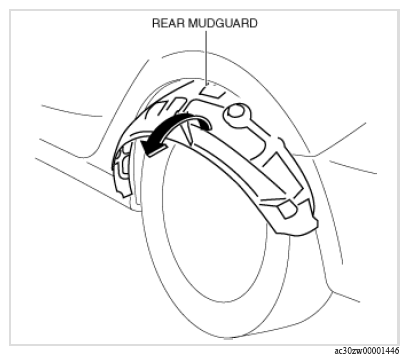

  4. Remove the rear mudguard in the direction of the arrow shown in the figure.
    G16376720Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
