Hood Removal/Installation

WARNING:
  • Always perform the procedure with at least another person to prevent the hood from falling. Otherwise, the hood may fall and cause injury.
  1. Remove the bolts shown in the figure and remove the hood.

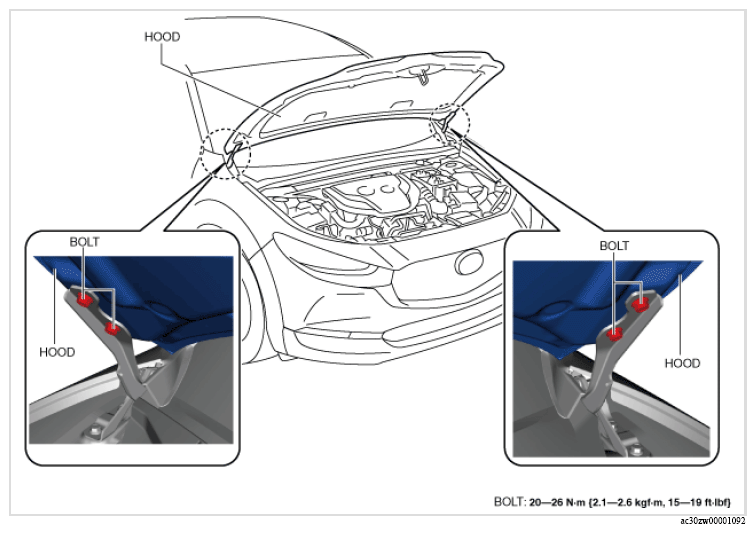

    Fig 1: Hood And Bolts With Torque Specification
    G16375973Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
