Front Door Speaker Removal/Installation

CAUTION:
  • If the procedure is performed while holding the front door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    3. Power window subswitch (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    4. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

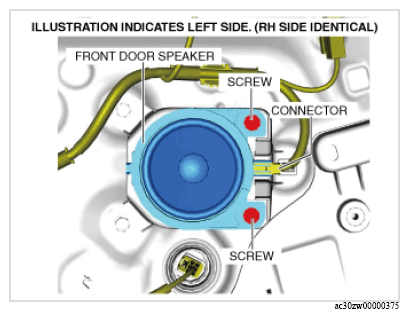

  3. Remove the screws.
    G16377249Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.

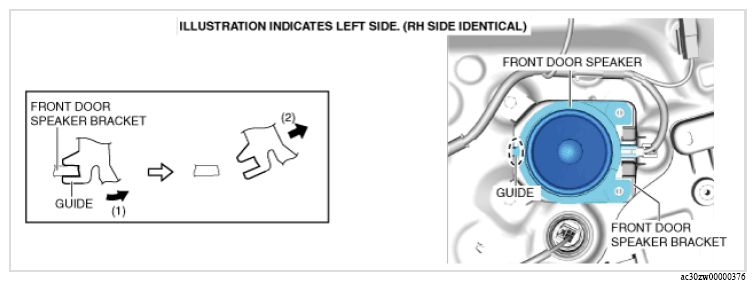

  5. Move the front door speaker in the direction of the arrow in the order of (1), (2) while detaching the guide.
    Fig 1: Front Door Speaker Bracket Bolts With Torque Specification
    G16377250Courtesy of MAZDA MOTORS CORP.

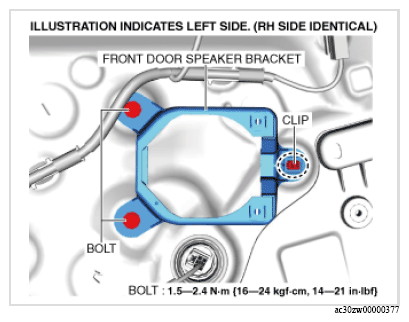

  6. When removing the front door speaker bracket, perform the following procedure:
    1. Remove the bolts.
      G16377251Courtesy of MAZDA MOTORS CORP.
    2. Remove the clip.
    3. Remove the front door speaker bracket.
  7. Install in the reverse order of removal.
