Front Center Speaker Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the center speaker grille. (See CENTER SPEAKER GRILLE REMOVAL/INSTALLATION .)

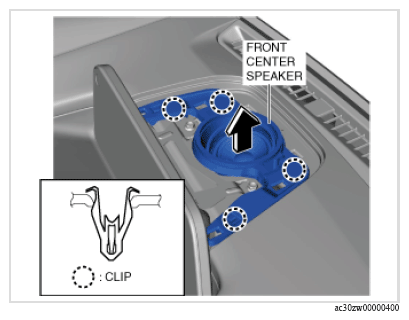

  3. Move the front center speaker in the direction of the arrow shown in the figure while detaching the clips.
    G16377246Courtesy of MAZDA MOTORS CORP.

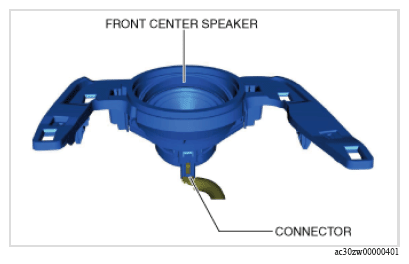

  4. Disconnect the connector.
    G16377247Courtesy of MAZDA MOTORS CORP.

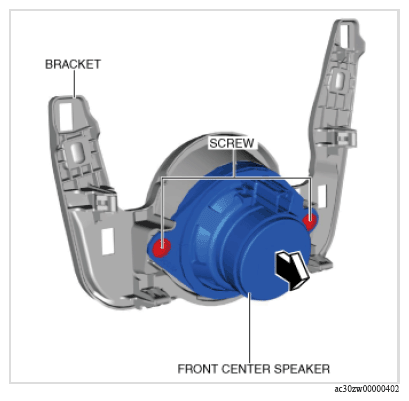

  5. Remove the screws.
    G16377248Courtesy of MAZDA MOTORS CORP.
  6. Remove the front center speaker in the direction of the arrow shown in the figure.
  7. Install in the reverse order of removal.
