Horn Lo

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the horn. (See HORN REMOVAL/INSTALLATION .)

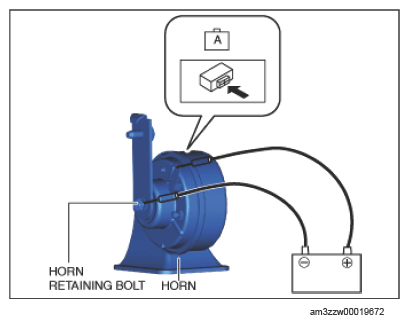

  3. Apply battery positive voltage to horn terminal, and connect the horn retaining bolt to ground as shown in the figure, and then verify that the horn sounds.
    G14584477Courtesy of MAZDA MOTORS CORP.
