Three Way Solenoid Valve Removal/Installation: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
- Remove in the order indicated in the table.

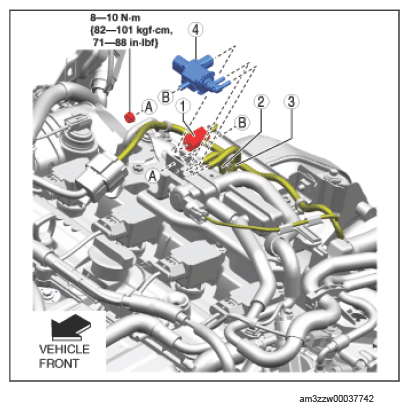

Courtesy of MAZDA MOTORS CORP.
COMPONENT OPERATIONSComponent no. Refer to 1 Connector 2 Vacuum hose No. 1
(See Vacuum Hose Installation Note .)3 Vacuum hose No. 2
(See Vacuum Hose Installation Note .)4 Three way solenoid valve - Install in the reverse order of removal.
