Intake Manifold Component Installation Note
- Install the intake manifold component.

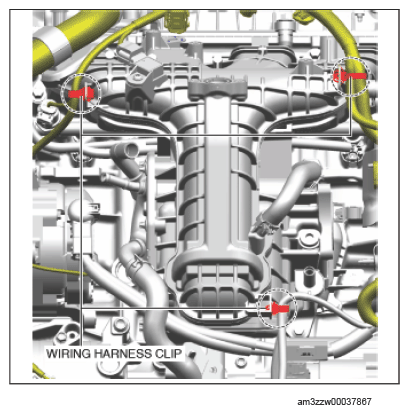

- Connect the wiring harness clip shown in the figure below.
- Install the following parts. (See ELECTRIC WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]
.)
- Electric water pump bracket
- Electric water pump
- Install the EGR pipe No. 1 and EGR pipe No. 2. (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
- Install the EGR valve. (See EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
- Install the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
