Fresh-air Duct Removal Note

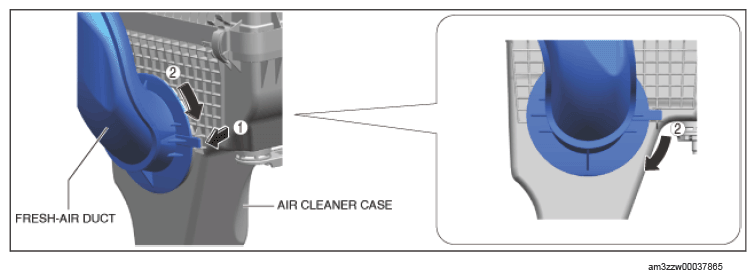

  1. While moving the tabs in the direction shown in the figure below, rotate the fresh-air duct.
    G14579123Courtesy of MAZDA MOTORS CORP.
  2. Remove the fresh-air duct.
