Air Cleaner Cover Installation Note

  1. Install the air cleaner cover as shown in the figure below.
    G13108246Courtesy of MAZDA MOTORS CORP.

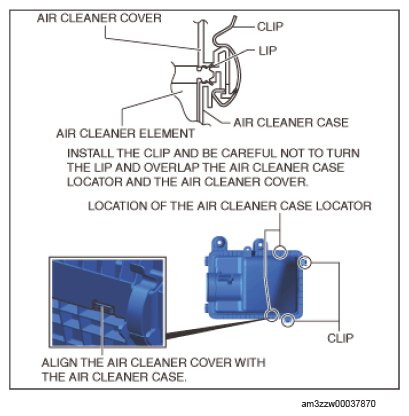

  2. Secure the air cleaner cover and the air cleaner case with the clip.
G14579130Courtesy of MAZDA MOTORS CORP.
