Check Valve (Intake-Air System) Removal/Installation: Notes

  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
  2. Remove in the order indicated in the table.

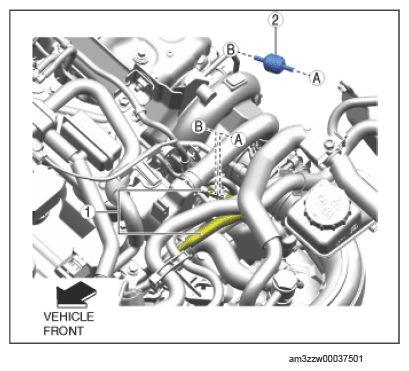

    G14579111Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no. Refer to
    1 Vacuum hose
    2 Check valve
    (See Check Valve Installation Note .)
  3. Install in the reverse order of removal.
