Check Valve Installation Note
Check Valve Installation Note

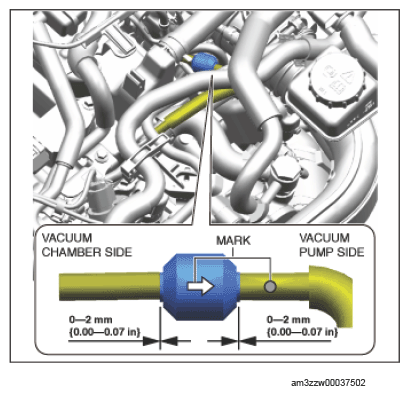

Install the check valve as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
