Airflow Mode Actuator Installation

WARNING:
  1. Install the airflow mode actuator to the bracket.

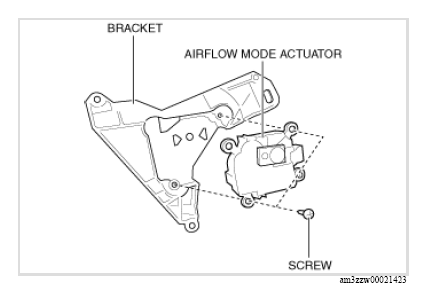

    G13177517Courtesy of MAZDA MOTORS CORP.
  2. Install the screws.
  3. Align the following airflow mode link tabs with the airflow mode main link grooves and install the airflow mode main link.
    • Airflow mode link tab A and airflow mode main link groove A
    • Airflow mode link tab B and airflow mode main link groove B
    • Airflow mode link tab C and airflow mode main link groove C

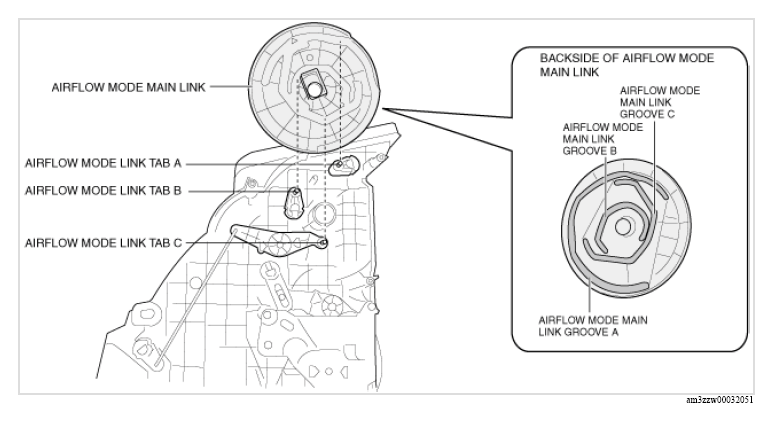

    G13177518Courtesy of MAZDA MOTORS CORP.
  4. Move the airflow mode main link in the direction shown in the figure below and verify that it rotates smoothly.

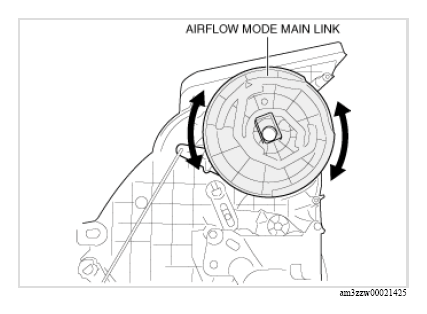

    G13177519Courtesy of MAZDA MOTORS CORP.
  5. Align the airflow mode main link hole with the shape of the airflow mode actuator shaft, and install the airflow mode actuator.
    NOTE:
    • The airflow mode main link is not secured, therefore hold it with your hand so that it does not detach.

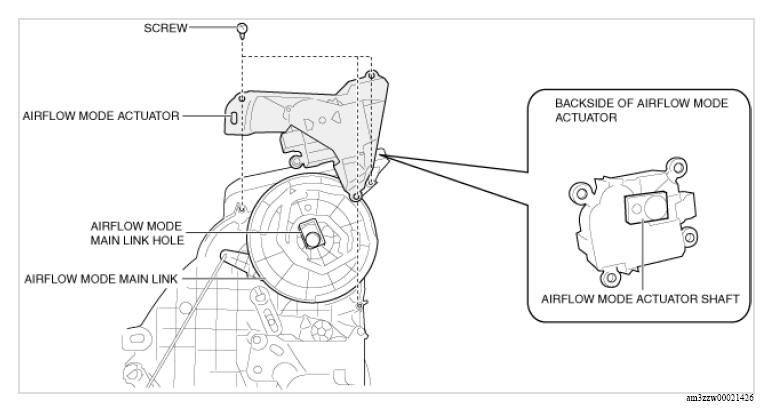

    G13177520Courtesy of MAZDA MOTORS CORP.
  6. Install the screws.
  7. Install the clip.

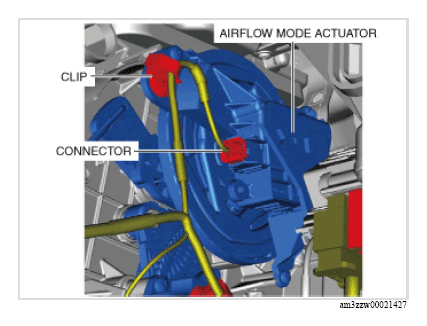

    G13177521Courtesy of MAZDA MOTORS CORP.
  8. Connect the connector.
  9. Install the following parts:
    1. Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    2. Passenger-side knee air bag module (with passenger-side knee air bag module) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .)
    3. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    6. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    8. Glove compartment (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  10. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
