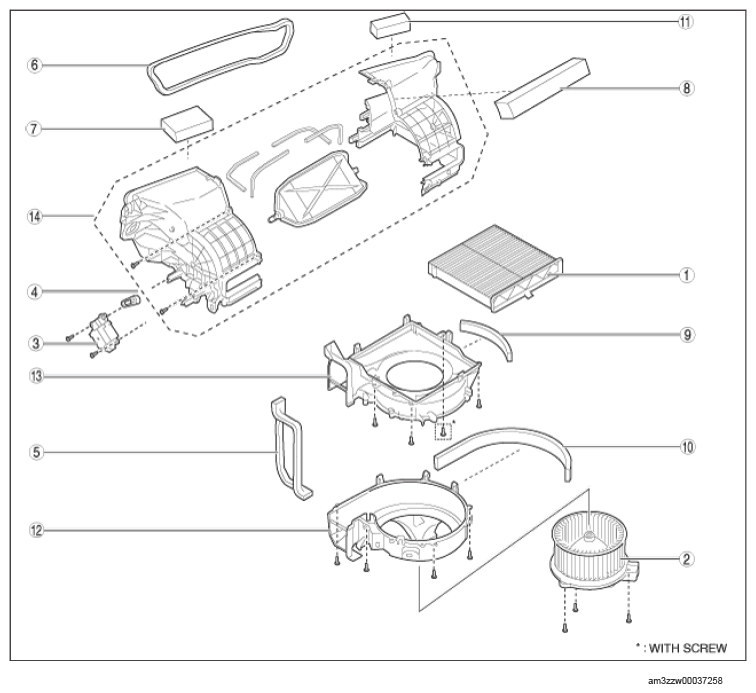

Blower Unit Disassembly/Assembly
CAUTION:
- Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
- Disassemble in the order indicated in the table.COMPONENT OPERATIONS
Component no. Refer to 1 Air filter 2 Blower motor 3 Air intake actuator 4 Air intake link 5 Polyurethane (1) 6 Polyurethane (2) 7 Polyurethane (3) 8 Polyurethane (4) 9 Polyurethane (5) 10 Polyurethane (6) 11 Polyurethane (7) 12 Blower case (2) 13 Blower case (1) 14 Blower case assembly - Assemble in the reverse order of disassembly.
